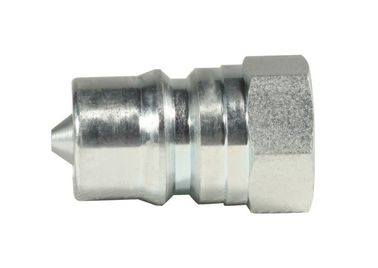

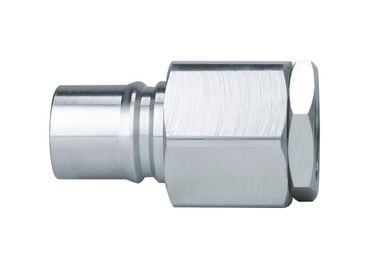

Carbon Steel Hydraulic Quick Connect Couplings Release Plug For Gas Transfer Lines
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Standard :: | ISO 7241-1 Series “B” | WP :: | Working Pressures To 5,000 Psi (345 Bar) |
|---|---|---|---|
| Size :: | 1/4' - 2' | Thread :: | BSPP, BSPT, NPT, NPTF, SAE |
| Connection :: | Locking Balls | Zinc Plated: | Cr3 |
| High Light: | quick disconnect hydraulic,hydraulic quick release coupling |
||
Carbon steel hydraulic quick release plug for ISO 7241-1 B Interchange, KZB-PF series Feature: 1. Poppet valves available to prevent uncoupled leakage. 2. Poppet valves open automatically when coupled, within rated working pressure, to keep the expedite flowing. 3. Critical parts are hardened for durability. 4. Durable ball-locking mechanism holds the mating halves together. 5. Socket and plug are precision machined from solid bar stock. 6. Carbon steel hydraulic quick release coupling series conforms to the standard of ISO7241-1B. Compatible with PARKER 60 Series: FASTER HNV Series: AEROQUIP FD45 Series and HANSEN HK Series. Application: Carbon steel hydraulic quick release plug KZB-PF sereis is mainly applied for hydraulic fluid lines as well as the chemical water, steam, and some gases transfer lines.
Part No.
|
ISO
|
Thread
|
Size
(inch)
|
Working Pressure
(PSI)
|
Rated Flow
(L/min)
|
Temperature Range
(°C)
|
||
KZB-01
|
DN3
|
ZG1/8
|
G1/8
|
NPT1/8
|
1/8
|
7500
|
5
|
NBR :-25~125
|
KZB-02
|
DN6.3
|
ZG1/4
|
G1/4
|
NPT1/4
|
1/4
|
6750
|
17
|
|
KZB-03
|
DN10
|
ZG3/8
|
G3/8
|
NPT3/8
|
3/8
|
4500
|
50
|
|
KZB-04
|
DN12.5
|
ZG1/2
|
G1/2
|
NPT1/2
|
1/2
|
5250
|
75
|
|
KZB-06
|
DN20
|
ZG3/4
|
G3/4
|
NPT3/4
|
3/4
|
3625
|
190
|
|
KZB-08
|
DN25
|
ZG1
|
G1
|
NPT1
|
1
|
4500
|
270
|
|
KZB-10
|
DN31.5
|
ZG1-1/4
|
G1-1/4
|
NPT1-1/4
|
1-1/4
|
2100
|
750
|
|
KZB-12
|
DN40
|
ZG1-1/2
|
G1-1/2
|
NPT1-1/2
|
1-1/2
|
2100
|
750
|
|
KZB-16
|
DN50
|
ZG2
|
G2
|
NPT2
|
2
|
1350
|
1600
|
|
Performance: Carbon steel hydraulic quick release plug KZB-PF sereis:
PART NO.
|
Thread
|
A
|
C
|
D
|
PART NO.
|
|
A
|
C
|
D
|
(mm.)(mm.)(mm.)
|
(in.) (in.) (in.)
|
||||||||
KZB-01PF
|
G1/8
|
41.0
|
14.0
|
17.0
|
KZB-01PF
|
NPT1/8
|
1.61
|
0.56
|
0.65
|
KZB-02PF
|
G1/4
|
35.0
|
19.0
|
22.0
|
KZB-02PF
|
NPT1/4
|
1.39
|
0.75
|
0.87
|
KZB-03PF
|
G3/8
|
38.0
|
22.0
|
26.0
|
KZB-03PF
|
NPT3/8
|
1.50
|
0.88
|
1.01
|
KZB-04PF
|
G1/2
|
44.0
|
28.0
|
33.0
|
KZB-04PF
|
NPT1/2
|
1.75
|
1.12
|
1.30
|
KZB-06PF
|
G3/4
|
74.0
|
35.0
|
40.0
|
KZB-06PF
|
NPT3/4
|
2.16
|
1.38
|
1.59
|
KZB-08PF
|
G1
|
66
|
41.0
|
48.0
|
KZB-08PF
|
NPT1
|
2.91
|
1.62
|
1.88
|
Carbon steel hydraulic quick release plug KZB-PF sereis
PART NO.
|
Thread
|
A
|
C
|
D
|
PART NO.
|
|
A
|
C
|
D
|
(mm.) (mm.) (mm.)
|
(in.) (in.) (in.)
|
||||||||
KZB12-10PF
|
G1 1/4
|
121.0
|
60.0
|
74.5
|
KZB12-N10PF
|
NPT1/4
|
4.75
|
2.35
|
2.95
|
KZB12-12PF
|
G1 1/2
|
124.5
|
60.0
|
74.5
|
KZB12-N12PF
|
NPT3/8
|
4.90
|
2.35
|
2.95
|
KZB16-16PF
|
G2
|
142.5
|
95.0
|
104.5
|
KZB16-N16PF
|
NPT1/2
|
5.65
|
3.75
|
4.10
|
KZB16-20PF
|
G2 2/1
|
151.5
|
95.0
|
104.5
|
KZB16-N20PF
|
NPT3/4
|
5.95
|
3.75
|
4.10
|
KZB16-24PF
|
G3
|
175.0
|
101.5
|
111.5
|
KZB16-N24PF
|
NPT1
|
6.87
|
4.00
|
4.39
|
