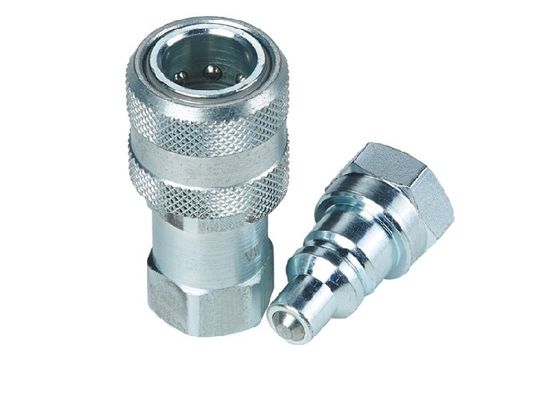

Parker Internal Standards Quick Connect Coupling High Pressure , Carbon Steel High Pressure Coupling

Parker Internal Standards Quick Connect Coupling High Pressure , Carbon Steel High Pressure Coupling
Parker Internal Standards Quick Connect Coupling High Pressure , Carbon Steel High Pressure Coupling

Large Image :  Parker Internal Standards Quick Connect Coupling High Pressure , Carbon Steel High Pressure Coupling Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: QPE
Certification: ISO9000
Model Number: KTC
Payment & Shipping Terms:
Minimum Order Quantity: 300
Price: Negotiable
Packaging Details: Standard exporting package or as per customers' requests.
Delivery Time: Within 30 days or as per customers' requirement.
Supply Ability: 90,000pcs/week, according the capacity of the assembly workshop
Detailed Product Description
Material: Carbon Steel Size :: 3/8'
Thread :: NPT Connection :: Locking Balls
Standard :: Compatible With PARKER TC Series, Poppet Valve
High Light:

quick release hydraulic couplings

,

hydraulic quick release coupling

SUPER HIGH PRESSURE HYDRAULIC  COUPLERS FOR PARKER INTERNAL STANDARDS

Feature:

1. Connexion by pushing back sleeve

2. Disconnexion by pulling back the female sleeve

3. Shut off by poppet valve.

4. Connecxion under pressure not allowed

5. Disconnexion under pressure not allowed

6. Interchangeability according t Partker internal Standards

Technical Specification

1. High grade carbon steel with heat treated wear parts

2. NBR Backup ring in PTFE

3. Temperature Range(-25°C to +125°C)

4. According t ISO 7241-2



Fidels of application



KTC sereis coupling is mainly applied for Agriculture, Industry, hydraulic tools, Earth moving, Building & Construction.





Part No. ISO Thread

Size

(inch)

Working Pressure

(PSI)

Rated Flow

(L/min)

Temperature Range

(-25°C to +125°C)

KTC -03 DN10 BSPT 3/8 BSPP3/8 NPT3/8 3/8 10000 23



Parker Internal Standards Quick Connect Coupling High Pressure , Carbon Steel High Pressure Coupling 0
