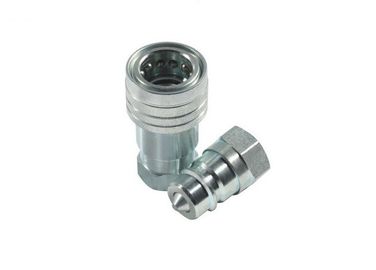

Durable Hydraulic Quick Connect Couplings Locking Balls For Agricultural Machinery

Large Image : Durable Hydraulic Quick Connect Couplings Locking Balls For Agricultural Machinery Get Best Price

Product Details:

Place of Origin:	CHINA
Brand Name:	QPE
Certification:	ISO9000
Model Number:	KZE-PF SERIES

Payment & Shipping Terms:

Minimum Order Quantity:	300
Price:	Negotiable
Packaging Details:	standard exporting package or as per customers' requests.
Delivery Time:	within 30 days or as per customers' requirement.
Supply Ability:	90,000pcs/week, according the capacity of the assembly workshop

Contact Now

Detailed Product Description

Standard ::	ISO 7241-1 Series “A”	WP ::	Working Pressures To 5,000 Psi (345 Bar)
Size ::	1/4' - 2'	Thread ::	BSPP, BSPT, NPT, NPTF, SAE
Connection ::	Locking Balls	Material:	Carbon Steel
High Light:	quick release hydraulic couplings , quick disconnect hydraulic

General Purpose Hydraulic Quick Connect Plug KZE-PF Series Interchange ISO A

Description:

KZE Series couplings feature:

* Poppet valves available to prevent uncoupled leakage.

* Ball valves available for rugged dependability in heavy-duty hydraulic applications, within rated working pressure.

* Critical parts are induction hardened for durability.

* Dependable ball-locking mechanism holds the mating halves together.

* Socket and plug are precision machined from solid bar stock.

* General Purpose Hydraulic Quick Connect Coupling KZE Series coupling interchanges with couplings meeting ISO 7241-1, Series A

Interchange Standard:

Parker 6600 Perfecting K Faster ANV Aeroquip FD 56 Snaptite 61

Dnp PAVX Safeway S56 Tomco A5600 Stucchi BIR

Applications:

General Purpose Hydraulic Quick Connect Plug KZE-PF Series brings to the industry a proven design for use on construction equipment, forestry equipment, agricultural machinery, oil tools, steel mall machinery, and other demanding hydraulic applications.

Specifications:

Body Size (in)	1/4	3/8	1/2	3/4	1	1-1/4	1-1/2	2
Rated Pressure (PSI)	5000	4500	4500	4500	3625	3625	3000	2250
Rated Flow (GPM)	3	6	12	28	50	88	220	240
Temperature Range (std seals)	-25℃ to +125℃
Standard seal material	NBR

Performance: Test Fluid:Oil-200SUS.1GPM=3.78L/Min,1PSID=0.0069MPa.

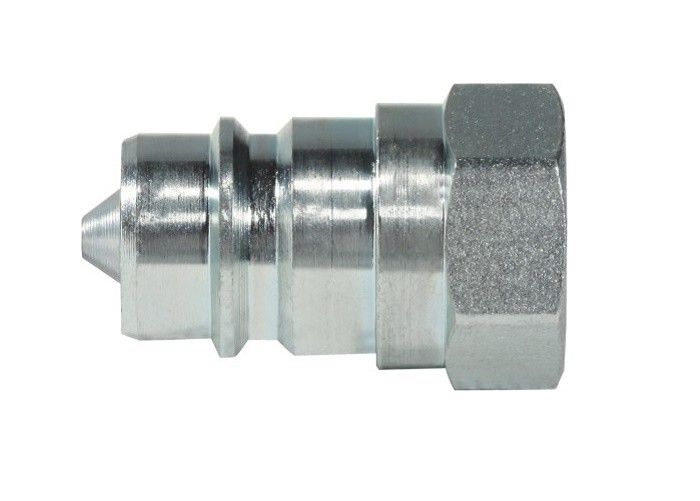

Hydraulic Quick Connect Plug KZE-PF Series

Durable Hydraulic Quick Connect Couplings Locking Balls For Agricultural Machinery 0

PART NO.	Thread	A	C	D	PART NO.		A	C	D
(mm.)(mm.)(mm.)					(in.) (in.) (in.)
KZE-02PF	G1/4	32	19	22	KZE-02PF	NPT1/4	1.27	0.75	0.87
KZE-03PF	G3/8	37	22	26	KZE-03PF	NPT3/8	1.47	0.88	1.01
KZE-04PF	G1/2	46	27	31	KZE-04PF	NPT1/2	1.82	1.06	1.23
KZE-22PF	M22*1.5	46	27	31	KZE-U3/4PF	UNF3/4	1.82	1.06	1.23
KZE-06PF	G3/4	58	35	40	KZE-06PF	NPT3/4	2.29	1.38	1.59
KZE-08PF	G1	66	41	48	KZE-08PF	NPT1	2.58	1.62	1.88
KZE-10PF	G1-1/4	75	54	59	KZE-10PF	NPT1-1/4	2.95	2.12	2.31
KZE-12PF	G1-1/2	86	60	68	KZE-12PF	NPT1-1/2	3.38	2.36	2.67
KZE-16PF	G2	100	77	84	KZE-16PF	NPT2	3.93	3.03	3.30
