22611 Bsp Female Hydraulic Hose Fittings 60° Cone Siver Golden with Carban Steel

I'm Online Chat Now
Certification
China Cixi Qianyi Pneumatic & Hydraulic Co.,Ltd. certification
We received your goods last thursday and we are very pleased with the quality of your product.

—— Lionel Lobo

Thanks very much for your perfect quality and VIP service, we will keep contract and do more business with you!

—— Mark From USA

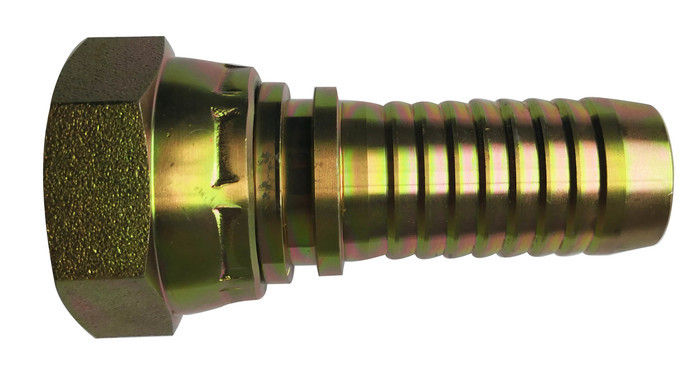

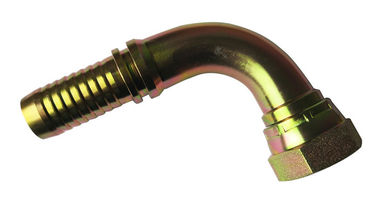

22611 Bsp Female Hydraulic Hose Fittings 60° Cone Siver Golden with Carban Steel

22611 Bsp Female Hydraulic Hose Fittings 60° Cone Siver Golden with Carban Steel
22611 Bsp Female Hydraulic Hose Fittings 60° Cone Siver Golden with Carban Steel 22611 Bsp Female Hydraulic Hose Fittings 60° Cone Siver Golden with Carban Steel

Large Image :  22611 Bsp Female Hydraulic Hose Fittings 60° Cone Siver Golden with Carban Steel Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: QPE
Certification: ISO9000
Model Number: 22611
Payment & Shipping Terms:
Minimum Order Quantity: 300
Price: Negociable
Packaging Details: Standard exporting package or as per customers' requests.
Delivery Time: 5-8weeks
Supply Ability: 600000 /Pieces/ per Month
Detailed Product Description
Standard: SAE,DIN,ISO,JIS Thread: BSP, NPT, JIC,NPT. METRIC
Material: Carban Steel Size:: 1/8"-2"
Connection: Thread Zinc: Siver Or Golden
High Light:

industrial hydraulic fittings

,

45 degree hydraulic fittings

22611 Bsp Female Hydraulic Pipe Fitting 60° Cone Hydraulic hose and fitting





Features:
1) Hydraulic tube fittings / adapters: We made according to ISO 1179, 6162, 6149, 11926, J146; DIN 3852, 7642; SAE J513 standards, and can offer whole series with Metric series, BSP series, JIC series, ORFS series, NPSM series, Flange series, ORB series with straight, elbow 45 degree, elbow 90 degrees. Materials: Carbon steel, Brass, Stainless steel



2) Hydraulic hose fittings: We made according to GB/ T 5628, 9065; DIN 2353, 3861, 3865, 3870, 7642, 7643; SAE J513, J514, J516, J518, J1453, J1467; BS 5200, JIS B 8363 and can offer Swaged hose fitting, Crimped hose fitting, Interlock hose fitting, Reusable hose fitting, and Socket less hose fitting. Metric; BSP 60° cone, BSP O-ring, BSPT, BSP multi-seal; NPT, JIC 74° cone, SAE 90° cone, SAE flange, ORFS. Materials: Carbon steel



3) Our products of hydraulic hose fittings and adapters have good quality and competitive price. We are looking for long-term buyers / cooperators in the world.



  HOSE BORE DIMENSIONS
PART NO. THREAD E DN DASH A C S2
22611-02-03 G1/8"X28 5 03 15 5.5 14
22611-02-04 G1/8"X28 6 04 15 5.5 14
22611-04-03 G1/4"X19 5 03 17 5.5 19
22611-04-04 G1/4"X19 6 04 18 5.5 19
22611-04-05 G1/4"X19 8 05 18 5.5 19
22611-04-06 G1/4"X19 10 06 18 5.5 19
22611-06-04 G3/8"X19 6 04 19 6.3 22
22611-06-05 G3/8"X19 8 05 19 6.3 22
22611-06-06 G3/8"X19 10 06 19.5 6.3 22
22611-06-08 G3/8"X19 12 08 19.5 6.3 22
22611-08-06T G1/2"X14 10 06 21 7.5 27
22611-08-08 G1/2"X14 12 08 21.5 7.5 27
22611-10-08 G5/8"X14 12 08 22 9.5 30
22611-10-10 G5/8"X14 16 10 23.5 9.5 30
22611-12-08T G3/4"X14 12 08 22 10.9 32
22611-12-10 G3/4"X14 16 10 24 10.9 32
22611-12-12 G3/4"X14 20 12 24 10.9 32
22611-16-12T G1"X11 20 12 24 11.7 41
22611-16-14 G1"X11 22 14 26 11.7 41
22611-16-16 G1"X11 25 16 27 11.7 41























































22611 Bsp Female Hydraulic Hose Fittings 60° Cone Siver Golden with Carban Steel 0
